Modulinis kaminas

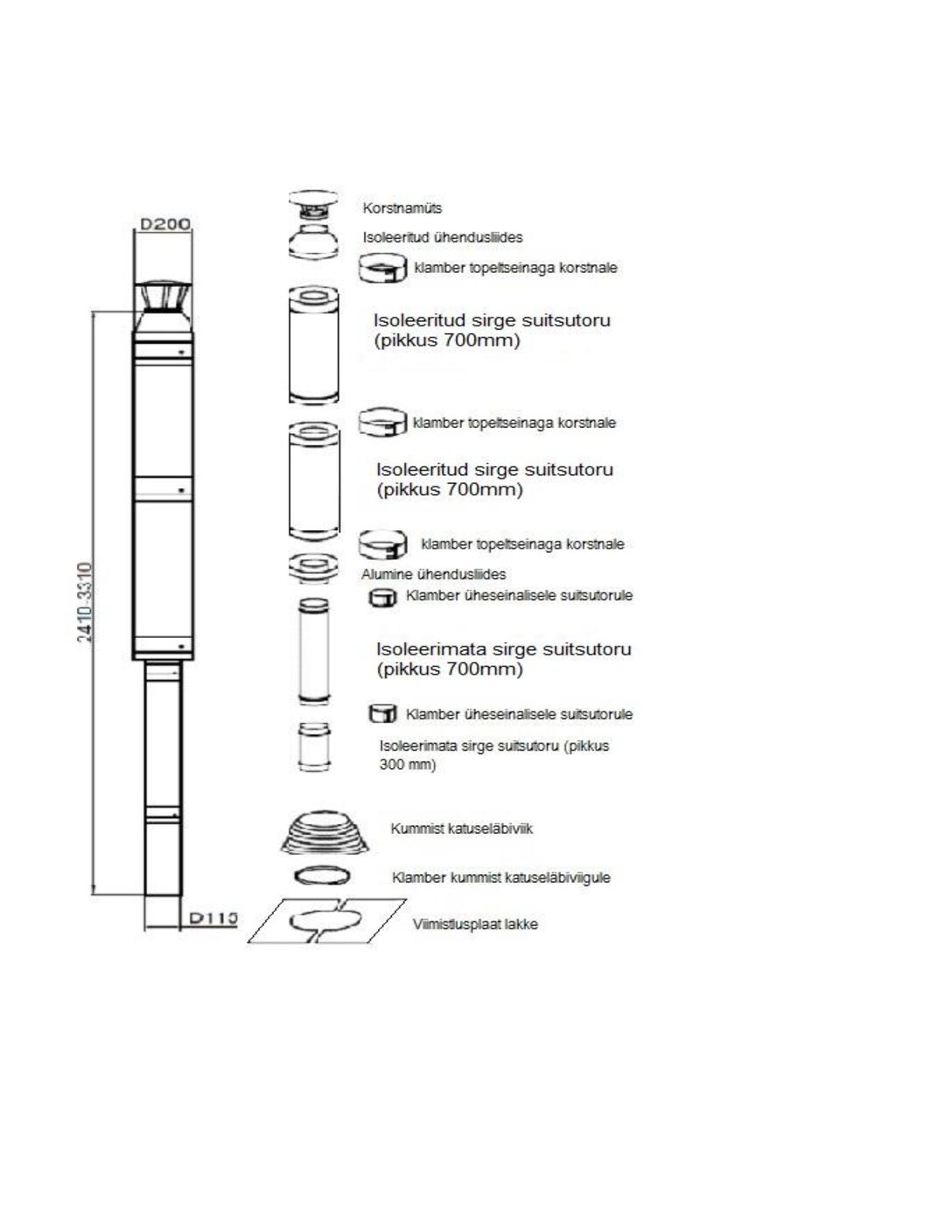

Stainless metal chimney with rubber rubber grommet for both straight roofs and pitched roofs.
Product parameters:
»Rubber grommet for straight and sloping roofs (up to 12 degrees)
»The maximum nominal chimney gas temperature at the oven joint is 600 ºC
»The cross-section of the chimney is round and its diameter (outer diameter) is 200 mm (insulation thickness 40 mm)
»The flue has a diameter of 115 mm and is made of 0.6 mm stainless steel
»The chimney has the CE mark, ie it meets international fire and safety requirements
»Safe distances from combustible materials: 130mm from the double-walled outer wall
»If the front of the connecting pipe is made of non-insulated material, the safety distance from this pipe to the building materials must be 500 mm
»The insulated chimney must be visible to at least 500 mm.
